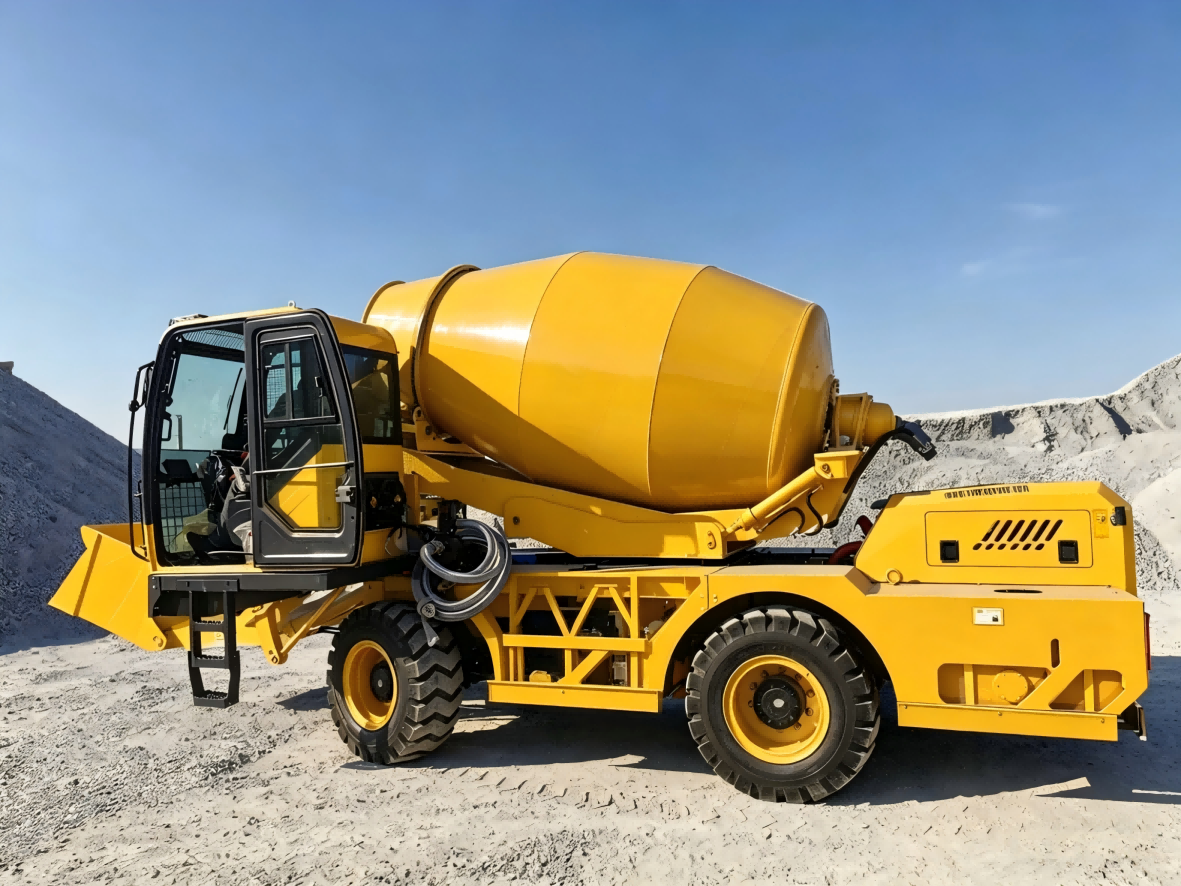

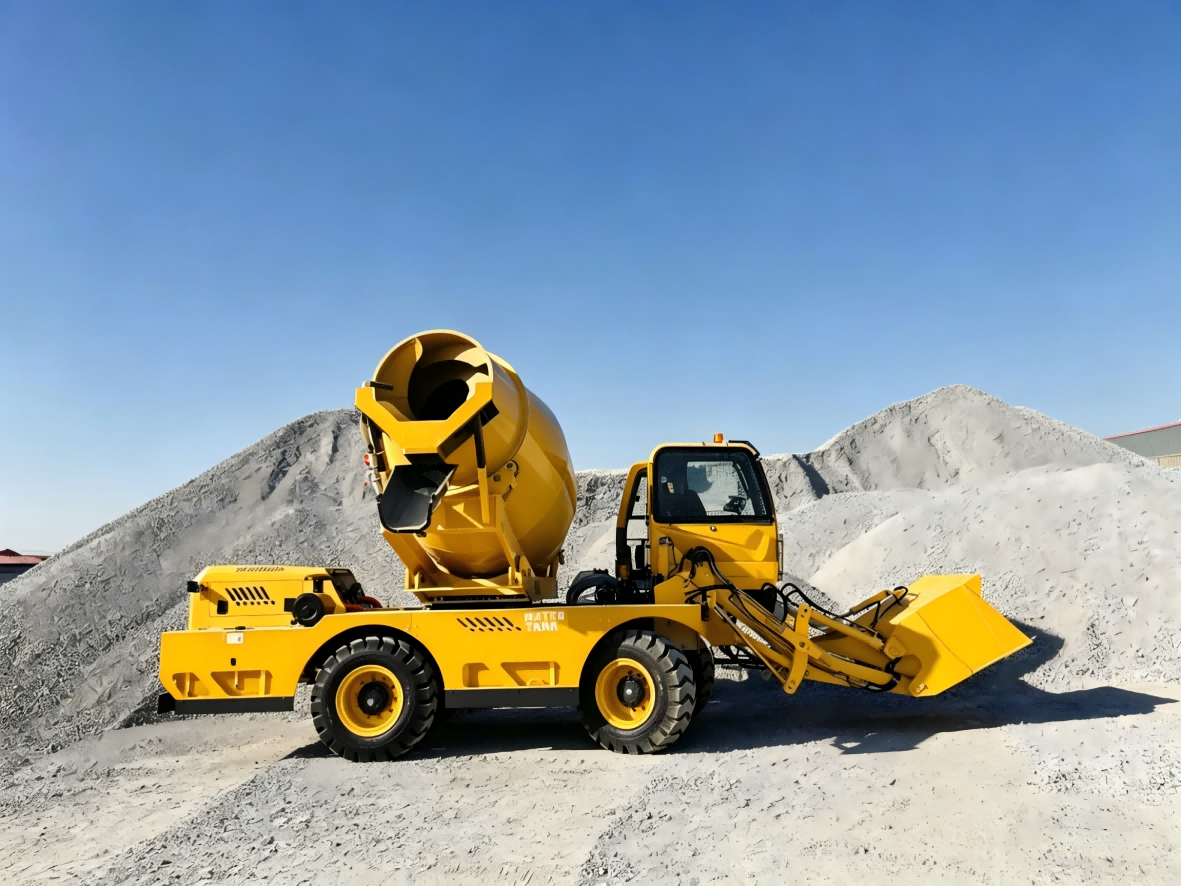

Self-Loading Mixer Truck Manufacturer | 1.2–6.5m³ Self Feeding Concrete Mixer Truck
397
LEEDS TECH is a professional manufacturer and exporter of self-loading concrete mixer trucks. We focus on R&D, production and global sales of construction machinery, specially customized for South America, Latin America and Africa complex road conditions and climate environment. Our machines adopt Yuchai original engine, optional Weichai & Dongfeng Cummins power, with strong power, low fuel consumption and high adaptability to high temperature, dusty and mountainous working sites. We strictly follow ISO and CE production standards, provide stable quality, complete spare parts supply and professional after-sales service for global distributors and end users.
Why Choose Our Self-Loading Mixer Truck
|
Feature |
Benefit for Your Business |
|
All-in-One Function |
Load, mix, transport and pour concrete in one machine, no extra equipment needed |
|
Labor & Cost Saving |
Reduce labor cost by up to 60% compared to traditional mixing methods |
|
Compact & Agile Design |
Narrow turning radius and articulated chassis, Drive in both directions ,perfect for tight construction sites |
|
Durable & Easy to Maintain |
Wear-resistant parts and simplified design for low maintenance costs |
|
High Efficiency |
Continuous concrete output with stable mixing quality, shortening project cycles |
Key Advantages
• Automatic weighing system ensures accurate proportioning of aggregates, cement and water
• Wear-resistant steel mixing drum and blades for long service life
• Hydraulic pilot control system for smooth and easy operation
• Full-view cab with protective mesh for enhanced safety
Full Parameter Comparison
| Performance Parameter | 1.2m³ Self-loading Mixer Truck | 1.8m³ 270° Self-loading Mixer Truck | 1.8m³ 270° Self-loading Mixer Truck 2 | 2.6m³ Model A | 2.6m³ Model C 270° Self-loading Mixer Truck | 2.6m³ Model D 180° Two-way Driving | 3.5m³ Model A 270° Self-loading Mixer Truck |
| Overall Dimensions (L×W×H) mm | 6400x2550x3300 | 7300x2650x3750 | 7300x2650x3750 | 7860x2750x4100 | 7860x2750x4100 | 7860x2750x4100 | 7830x2680x4170 |
| Total Operating Weight | 4185kg | 5666kg | 5666kg | 6500kg | 6500kg | 6500kg | 7500kg |
| Drum Geometric Capacity | 1700L | 2680L | 2680L | 3580L | 3580L | 3580L | 4740L |
| Concrete Output | 1.2m³/tank | 1.8m³/tank | 1.8m³/tank | 2.6m³/tank | 2.6m³/tank | 2.6m³/tank | 3.5m³/tank |
| Drum Rotation Speed | 13rpm | 13rpm | 13rpm | 13rpm | 13rpm | 13rpm | 13-20rpm |
| Rotation Motor | BM5-125 | BM5-160 | BM5-160 | BM5-160 | BM5-160 | BM5-160 | BM5-160 |
| Engine Brand | Yunnei 490 Turbocharged | Yunnei 490 Turbocharged | Yuchai 4102 Turbocharged | Yuchai 4102 Turbocharged | Yuchai 4102 Turbocharged | Yuchai 4102 Turbocharged | Yuchai 4105 Turbocharged |
| Engine Power kW/HP | 55kw/75ps | 55kw/75ps | 55kw/75ps | 78kw/106ps | 78kw/106ps | 78kw/106ps | 85kw/106ps |
| Max. Gradeability | 30° | 30° | 30° | 30° | 30° | 30° | 30° |
| Max. Speed | 20km/h | 20km/h | 20km/h | 30km/h | 30km/h | 30km/h | 30km/h |
| Min. Ground Clearance | 280mm | 280mm | 280mm | 380mm | 380mm | 380mm | 380mm |
| Min. Turning Radius | 4700mm | 5270mm | 5270mm | 5300mm | 5300mm | 5300mm | 5300mm |
| Front and Rear Wheel Track | 2300mm | 2600mm | 2600mm | 2800mm | 2800mm | 2800mm | 2900mm |
| Left and Right Wheel Track | 1550mm | 1510mm | 1510mm | 1700mm | 1700mm | 1700mm | 2100mm |
| Water Tank Capacity | 400L | 400L | 400L | 500L | 500L | 500L | 620L |
| Fuel Tank Capacity | 63L | 63L | 63L | 75L | 75L | 75L | 75L |
| Fuel Consumption L/h | 7.92L | 11.23L | 11.23L | 11.23L | 11.23L | 11.23L | 12.24L |
| Sand and Gravel Loading Time(min/tank) | 2/min | 4/min | 4/min | 5/min | 5/min | 5/min | 7/min |
| Parts to be Disassembled for Packing | Cab, Drum | Cab, Drum | Cab, Drum | Cab, Drum | Cab, Drum | Cab, Drum | Cab, Drum |
| 3.5m³ Model B 270° Self-loading Mixer Truck | 3.5m³ Model C 270° Cab Synchronous Rotation | 3.5m³ Model D 180° Two-way Driving | 4m³ Model A 290° Mixer Truck | 5.5m³ 270° Self-loading Mixer Truck | 6.5m³ 290° Self-loading Mixer Truck |
| 7600x2800x4180 | 7600x2800x4180 | 7590x2600x4270 | 7640x2870x4750 | 8450x3100x4580 | 8450x3050x4830 |
| 8010kg | 8010kg | 8050kg | 9000kg | 11200kg | 12520kg |
| 4740L | 4740L | 4740L | 6000L | 7800L | 9000L |
| 3.5m³/tank | 3.5m³/tank | 3.5m³/tank | 4m³/tank | 5.5m³/tank | 6.5m³/tank |
| 13-20rpm | 13-20rpm | 13-20rpm | 17rpm | 20rpm | 16.5rpm |
| BM5-160 | BM5-160 | Sunny 56 Motor (USA) | HAA2FM56/61W-VTD527 | Sunny 56 Motor (USA) | Sunny 63 Motor (USA) |
| Yuchai 4105 Turbocharged | Yuchai 4105 Turbocharged | Yuchai 4105 Turbocharged | Yuchai YCD4J22G | FAW Xichai 6110 Turbocharged | Weichai Deutz 6105 Turbocharged |
| 85kw/106ps | 85kw/106ps | 85kw/106ps | 85kw/115ps | 110kw/150ps | 92kw/125ps |
| 30° | 30° | 30° | 30° | 45° | 45° |
| 30km/h | 30km/h | 30km/h | 30km/h | 42km/h | 40km/h |
| 380mm | 380mm | 380mm | 330mm | 380mm | 350mm |
| 5300mm | 5300mm | 5300mm | 4800mm | 6200mm | 4800mm |
| 2640mm | 2640mm | 2687mm | 2480mm | 3350mm | 2850mm |
| 2200mm | 2200mm | 2260mm | 1820mm | 2480mm | 2100mm |
| 620L | 620L | 620L | 660L | 860L | 1465L |
| 75L | 75L | 75L | 230L | 180L | 370L |
| 12.24L | 12.24L | 12.24L | 12.24L | 15.84L | 13.25L |
| 7/min | 7/min | 7/min | 8/min | 10/min | 12/min |
| Cab, Drum, Distributor, Seat, Grease Pump, Tire | Cab, Drum, Distributor, Seat, Grease Pump, Tire | Cab, Drum, Hood, Distributor, Seat | Cab, Drum, Distributor, Seat(rear dual tires also need to be disassembled) | Whole Machine Transportation | Whole Machine Transportation |
Key Advantages
• Automatic weighing system ensures accurate proportioning of aggregates, cement and water
• Wear-resistant steel mixing drum and blades for long service life
• Hydraulic pilot control system for smooth and easy operation
• Full-view cab with protective mesh for enhanced safety
High-Efficiency Self-Loading System

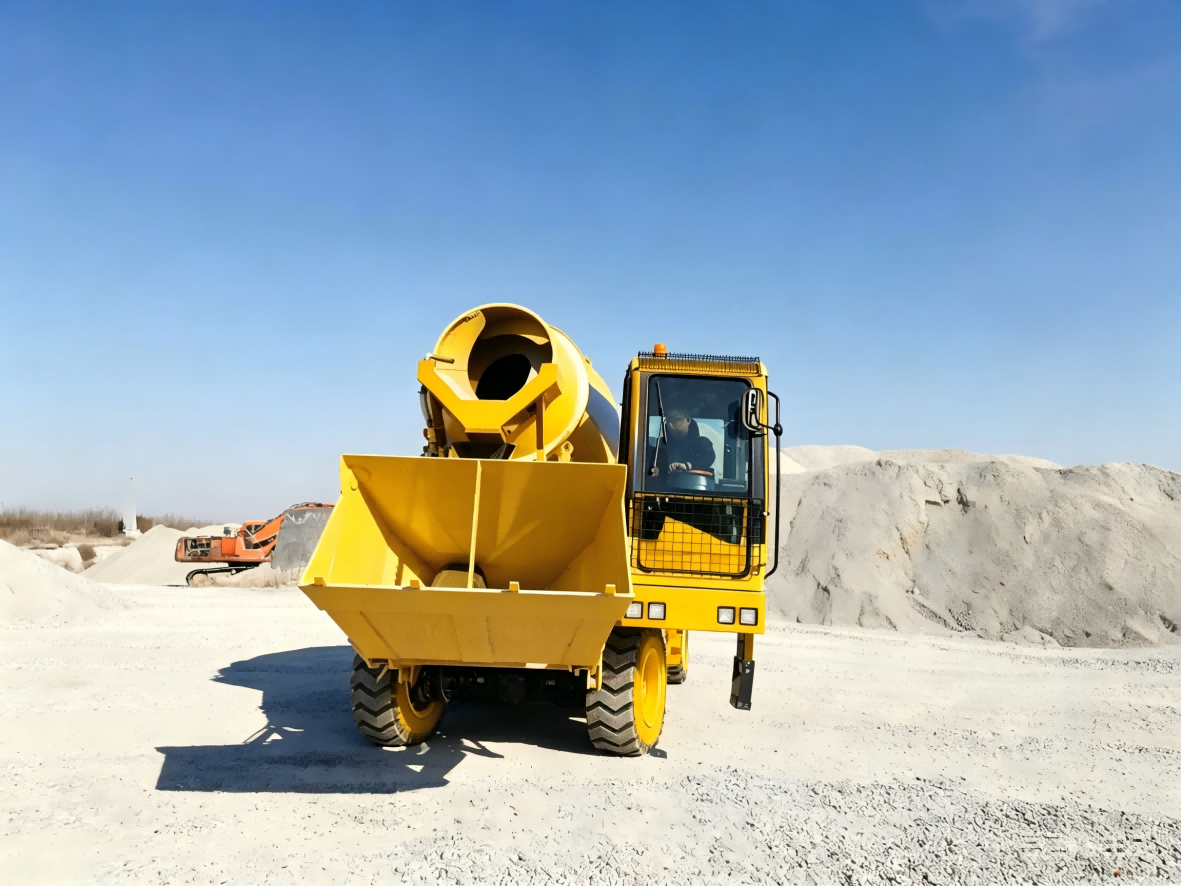

• Front-mounted loader bucket with automatic loading function
• Hydraulic drive for fast and stable feeding
• High-precision weighing sensor ensures consistent concrete quality
Uniform Mixing & Smooth Discharging
• Double spiral mixing blades for homogeneous concrete
• Large discharge opening with adjustable chute for multi-direction pouring
• Anti-stick design reduces concrete residue inside the drum
Reliable Hydraulic & Power System
• High-quality hydraulic pump and valve components for stable performance
• Low fuel consumption engine with strong power output
• Optimized heat dissipation design suitable for high-temperature environments

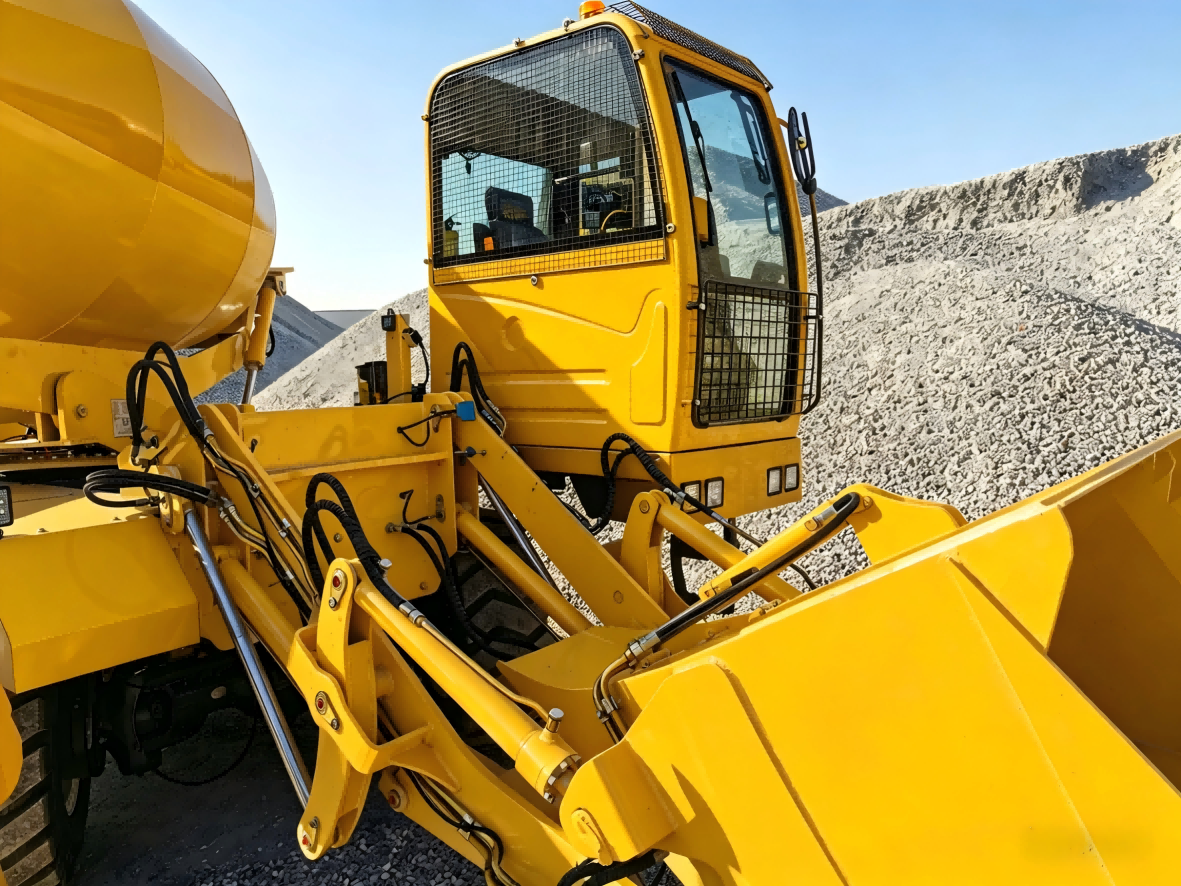

Operator-Friendly Cab Design
• 360° panoramic view with protective mesh
• Ergonomic seat and shock-absorbing structure for long-hour operation
• Centralized control panel with clear indicators
Application Scenarios
Small & Rural Construction
• Residential buildings, farmhouses, and small-scale infrastructure projects
• Ideal for remote areas without access to commercial concrete batching plants
Road & Bridge Construction
• Rural roads, village-to-village roads, and small bridge projects
• On-site concrete mixing meets different construction requirements
Water Conservancy & Irrigation
• Canals, reservoirs, and irrigation facilities
• Compact design adapts well to mountainous and uneven terrain
Off-Grid & Emergency Projects
• Temporary construction sites and disaster relief projects
• Independent power system without relying on external electricity.
